Three types:

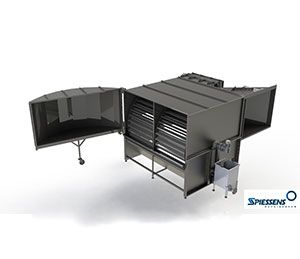

Split
- 1 rotor split in half
- Evaporation up to 0,6 l/kWh
- With 1 fan

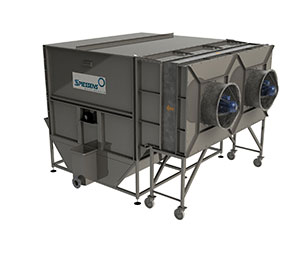

Single rotor
- 1 rotor
- Evaporation up to 0,6 l/kWh
- With 2 fans

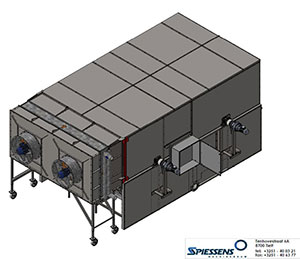

Double rotor
- 2 rotors per unit
- Evaporation up to 1,0 l/kWh
- With 2 fans
Models
| Model |
Plan |
HE max (kW) |
Evaporation (l/kW) |
Evaporation (l/h) |
LxWxH (m) |
Rotor (pcs.) |
Fan (pcs.) |
Power fan (kW) |
Air volume/fan (m³/h) |
| M301-06 |
 |
300 |
0,6 |
180 |
3,95x3,49x2,73 |
1 |
2 |
1,50 |
10.000 |
| M301-10 Split |
 |
300 |
1,0 |
300 |
5,75x3,49x2,73 |
1/1 |
1 |
4,00 |
22.000 |
| M401-10 Split |
|
400 |
1,0 |
400 |
5,75x3,49x2,73 |
1/1 |
1 |
4,00 |
22.000 |
| M601-06 |
|
600 |
0,6 |
360 |
4,04x3,49x2,73 |
1 |
2 |
3,00 |
19.000 |
| M601-1006 Split |
 |
600 |
1,0 |
600 |
4,04x3,49x2,73 |
1/1 |
2 |
4,00 |
20.000 |
| M602-10 |
 |
600 |
1,0 |
600 |
7,77x3,49x2,73 |
2 |
2 |
4,00 |
20.000 |
| M801-06 |
 |
800 |
0,6 |
480 |
|
1 |
2 |
4,00 |
22.500 |
| M802-10 |
 |
800 |
1,0 |
800 |
|
2 |
2 |
5,50 |
22.500 |
| M1202-06 mono-behuizing |
 |
1.200 |
0,6 |
720 |
4,04x7,96x2,73 |
2 |
4 |
3,00 |
19.000 |
| M1204-10 |
 |
1.200 |
1,0 |
1.200 |
7,77x8,43x2,73 |
4 |
4 |
4,00 |
20.000 |
